TTNergy Full Black Solar Panels Factory 410w 420w 450w All Black Solar Panel For Residential House

Ask Lasest Price
Brand Name :	TTNergy
Model Number :	TTNMH108-410-M10
Supply Ability :	100000000000000 Watt/Watts per Year
Price :	$0.20/watts 14760-147599 watts

Add to Cart

Product Details
Company Profile

TTNergy Full Black Solar Panels Factory 410w 420w 450w All Black Solar Panel For Residential House

TTNergy Mono crystalline 182mm 10BB Solar panel

PERC 182mm Solar Cell with Solar Panel's efficiency up to 21.47%

182mm solar panel use 182mm 10BB/11BB solar cell, increases the wafer size, optimizes the layout profoundly and decreases the invalid power generation area.

TTNergy Full Black Solar Panels Factory 410w 420w 450w All Black Solar Panel For Residential House

All Black Model	Maximum Power	Efficiency	External Dimensions	Weigh	Solar Cells	Tandem structure
TTNMH108-410-M10	410W	21.00%	1722x1134x30mm	20.5kg	Mono crystalline 182mm (2x54pcs)	10BB
TTNMH108-405-M10	405W	20.80%
TTNMH108-400-M10	400W	20.50%
TTNMH108-395-M10	395W	20.20%
TTNMH108-390-M10	390W	20.00%
TTNMH108-385-M10	385W	19.80%

Only some models, please contact customer service if other models are needed.

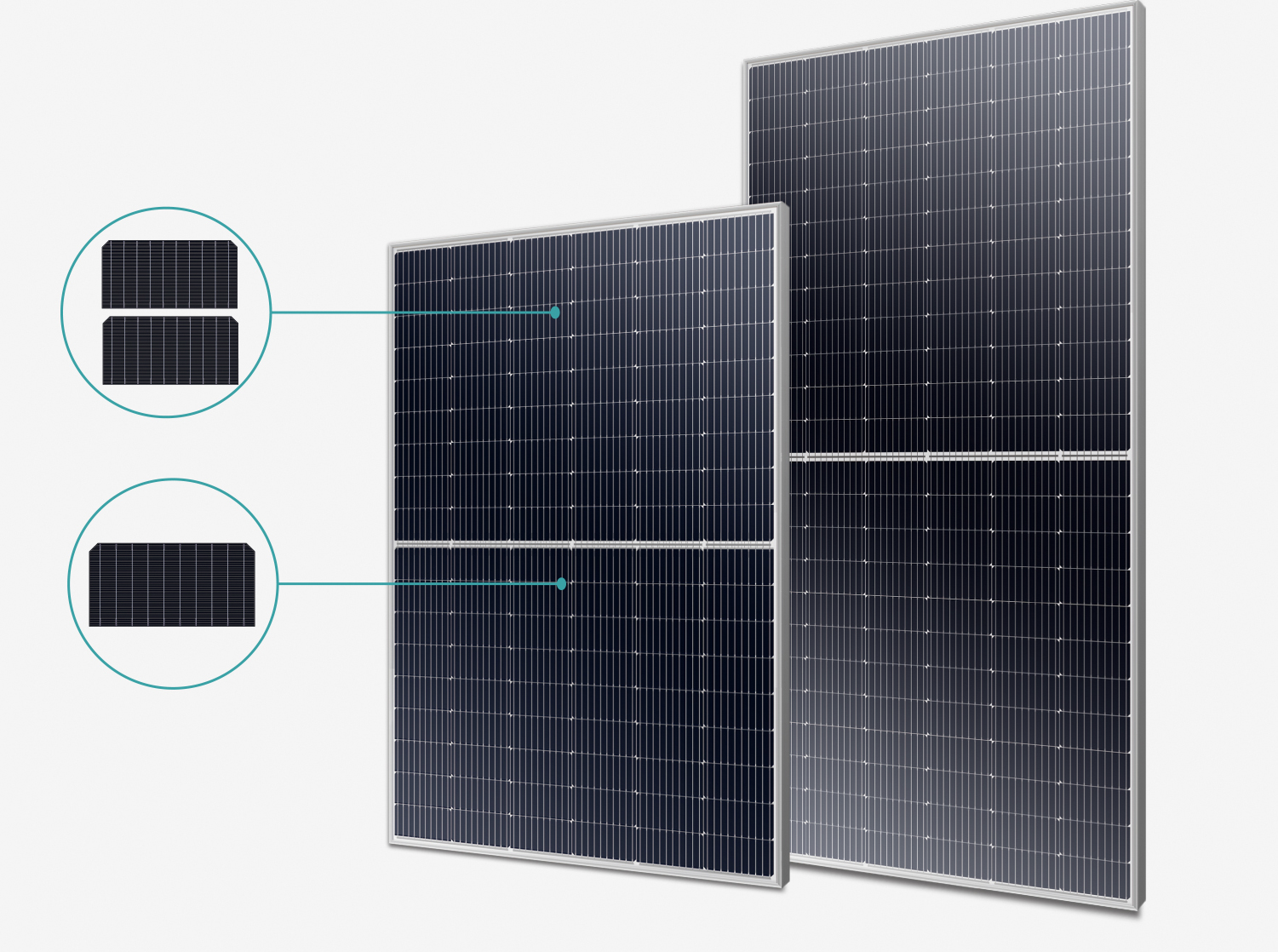

Half Cell Technology

The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the
maximum power output but also assures the reliability of solar panels.

MBB Technology

TTNergy 182mm Solar Panel adopts multibusbar technology. More busbars of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.

Standard & All Black Solar Panels max power breaks through 600W+

01. 108/120/132/144/156 Cells Solar Panels

02. All Black Solar Panel for home use

03. 380W-600W+ Solar Panel, Suitable for all
scenarios, from large power stations to residential roofs

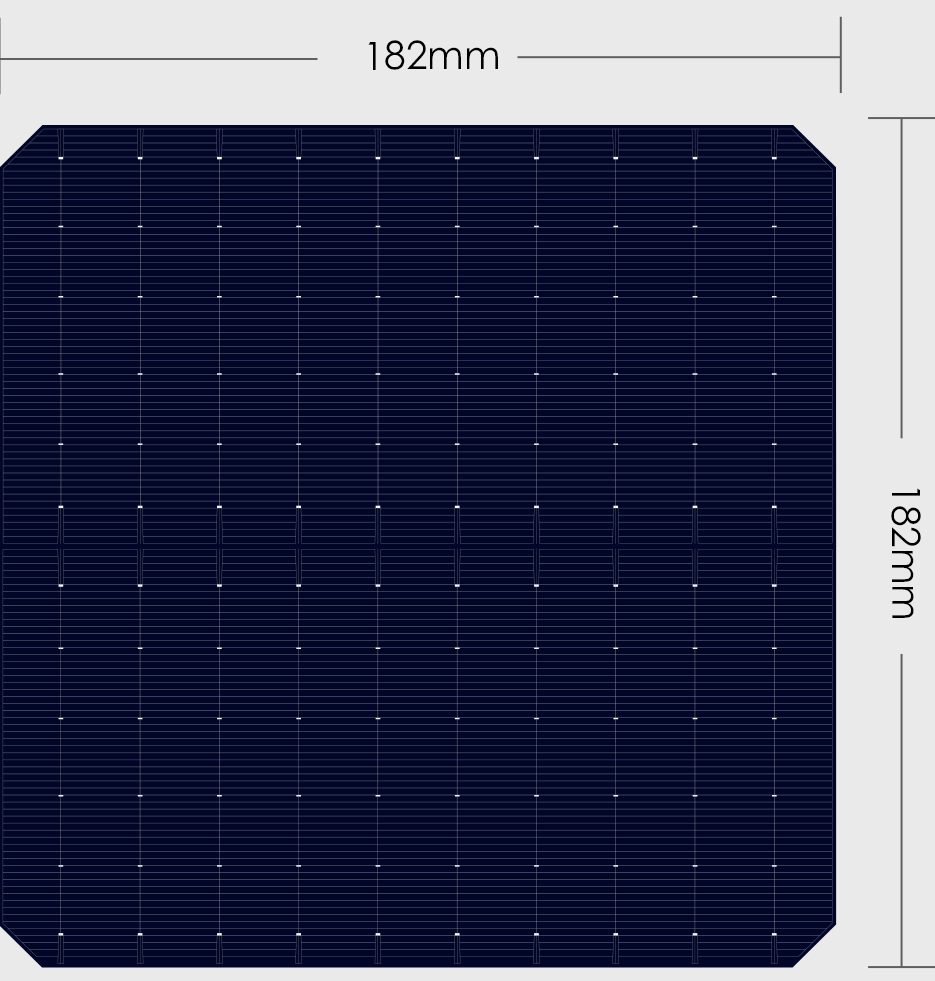

Solar cell

TTN-M10-10B

182mm Mono Solar Cell

Efficiency: 21.5%-22.8%

Format: 182mm×182mm±0.25mm

Thickness: 180±18μm

Front(-): 0.6mm bus bars(silver),

blue anti-reflecting coating(silicon nitride)
Back(+): 2.0mm wide soldering pads

(silver back surface field(aluminum)

TTNergy High-efficiency 10BB Mono cell uses the unique bifacial light receiving structure and the Passivated Emitter and Rear Cell(PERC) technology. Manufacturing module with more than 360W(6×10) and 430W(6×12) power output becomes easier than ever.

More models

The following models are all TTNergy 182mm 10BB solar cells. We also have other solar cell models, which may have different sizes. If you need them, please contact customer service.

40W

Efficiency 17.46%

580×395×25mm

50W

Efficiency 17.83%

710×395×25mm

60W

Efficiency 17.77%

855×395×25mm

70W

Efficiency 17.99%

985×395×30mm

80W

Efficiency 18.35%

570×765×30mm

90W

Efficiency 18.24%

645×765×30mm

100W

Efficiency 18.16%

720×765×30mm

110W

Efficiency 18.20%

790×765×30mm

120W

Efficiency 19.34%

1070×580×30mm

130W

Efficiency 19.20%

885×765×30mm

140W

Efficiency 19.01%

980×765×30mm

150W

Efficiency 15.04%

1045×765x30mm

160W

Efficiency 19.63%

1105×765×30mm

170W

Efficiency 19.16%

1170×765×30mm

180W

Efficiency 18.90%

1245×765×30mm

190W

Efficiency 18.82%

1320×765×30mm

200W

Efficiency19.01%

1375x765x30mm

210W

Efficiency 18.80%

1460×765×30mm

220W

Efficiency19.90%

1445×765×30mm

230W

Efficiency 19.59%

1535×765×35mm
